A topographic survey can prevent most drainage conflicts on a crowded site, as long as somebody orders it early enough to matter. High-density projects leave very little bare ground. Buildings, parking, sidewalks, courtyards and utility structures cover nearly the whole parcel. Water has almost nowhere to soak in and only a few narrow paths to travel. Every one of those paths depends on grade differences measured in inches. The survey turns those inches into numbers a designer can work with.

Measuring Small Elevation Differences Across a Crowded Site

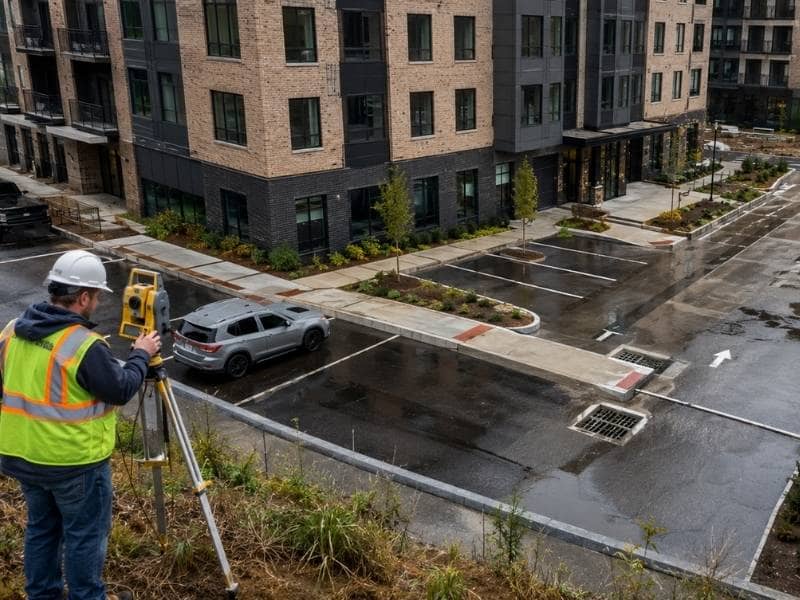

Dense sites live or die on small grade changes. Two inches across a courtyard decides whether water reaches a drain or pools against a wall. Nobody can judge that difference by eye. Survey crews collect closely spaced elevations across paved areas. They add extra shots at every seam, joint, ramp and transition.

Coverage has to match the complexity. On an open field a designer can work from contours at wide intervals. A site packed with structures needs spot elevations at specific points instead. Contours become almost meaningless between buildings. Crews record the top and bottom of every curb, the corners of every landing, and the flow line of every gutter.

Utility structures belong in the same dataset. Grates, cleanouts, vault lids and trench drains all sit at fixed elevations that limit the design. Measuring them early avoids a plan that quietly assumes they can be raised.

Tracing Water Between Buildings, Courtyards, and Parking Areas

Surface data shows the routes water actually takes through the site. On a dense parcel those routes squeeze between buildings, run along the base of walls and cross parking aisles at odd angles. The survey reveals where flow gathers. That’s usually a narrow gap carrying far more water than its width suggests.

Gathering is what creates the risk. Water spread across a wide lawn behaves gently. The same volume funneled between two buildings moves fast. It can scour landscaping, undermine pavers and swamp a single small drain. Mapping the collection points lets the engineer size drainage for what really arrives.

Conditions next door feed the problem. Roof drainage, neighboring pavement and street runoff all enter the site somewhere. The survey documents those entry points so the design accounts for water the project didn’t create.

Comparing Door Thresholds With Surrounding Pavement

Entrances deserve their own measurements. Crews shoot the elevation at each doorway, garage ramp, loading dock and ground-floor opening. Then they compare it against the pavement right outside. That comparison shows how much protection each opening has, as a real number instead of an impression.

Ramps concentrate the risk. A garage entrance sits at the low point of a slope by definition. The crest elevation ahead of it, the gutter line beside it and the surrounding sidewalk grades all decide whether surface water runs down the ramp during a storm. Measuring the crest carefully gives the designer something to work with.

Accessible routes add a second requirement at the same spots. Landings, ramp slopes and cross slopes have to meet accessibility rules. They also have to shed water away from the door. Those two goals pull against each other. Accurate elevations are what let a designer satisfy both.

Identifying Limited Areas for Stormwater Storage

Storage on a dense site usually hides. There’s rarely room for a pond. Engineers look at underground chambers beneath parking, storage under a courtyard, blue roof systems or planted depressions tucked into leftover space. Every one of those options depends on available depth, which comes straight out of the survey.

Depth limits the design more often than area does. An underground system needs cover above it, fall to its outlet, and clearance from foundations and existing utilities. The survey supplies the elevations that show whether all three can happen at once. Sometimes they can’t. Knowing that early saves a wasted design cycle.

Outlet elevation decides everything downstream. If the connection point sits higher than the proposed storage bottom, gravity release stops working. The design then changes shape entirely.

Revising the Surface Model as the Site Plan Changes

Dense projects change layouts over and over, and each change touches the drainage. Moving a building ten feet alters where water gathers. Adding parking spaces or relocating a courtyard does the same. The surveyed base has to keep pace with those revisions.

Some changes need new field data instead of a redraw. A design may shift into an area the first survey covered lightly. Demolition may expose ground nobody could measure before. Crews return and fill the gap. Working from an outdated surface produces a drainage plan that looks correct and fails quietly.

Construction generates its own revisions. Checking built grades against the approved design at each stage catches problems while equipment is still on site. That’s the only point where fixing them is simple.
