Moving dirt is one of the priciest parts of any build. Every truckload of fill and every cut adds to the bill. Grade a lot without good data and you can move far more than you need. A topographic survey shows the ground’s real shape, so your crew grades smart instead of guessing.

Builders who skip this step pay twice. They move dirt once on a hunch, then again to fix the mistake. The survey gives you the clues to plan the grade right the first time. Read them well and you save time, money and a lot of headaches.

Terrain Characteristics That Influence Grading Decisions

The shape of a lot decides how much work grading takes. A flat site needs little cut or fill. A steep or rolling site needs a lot more. Knowing the terrain up front tells you what you’re in for.

Slope is the first thing to check. A gentle grade drains well and grades cheap. A steep grade may need terracing or a retaining wall. Each degree of slope adds cost and changes your approach.

High and low points matter just as much. The high spots are where you cut, and the low spots are where you fill. Balancing the two on site can save you from hauling dirt in or out. That balance is one of the biggest cost levers in earthwork.

How a Topographic Survey Highlights Critical Elevation Changes

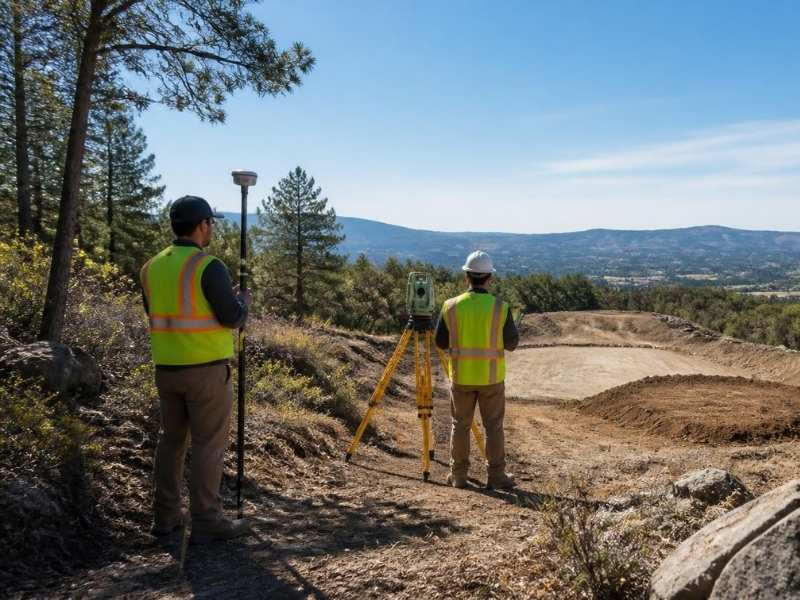

A topographic survey turns the ground into numbers you can plan with. It records elevation across the lot and draws it as contour lines. Those lines show every rise, dip and bench in the land. You see the real shape before a single blade touches soil.

The survey flags the changes that hit your budget hardest. A sudden drop-off means extra fill or a wall. A high ridge means a big cut to level a pad. Spotting these early lets you design a grade that works with them.

It also shows the exact height difference between points. You learn how many feet you must cut or fill to hit your target grade. That number drives your dirt estimate and your equipment plan. Guess it wrong and your budget slips fast.

Natural and Existing Features That Should Not Be Overlooked

Grading is not just about dirt. The survey maps features that can block or complicate the work. Miss one and you can hit a costly surprise mid-job.

Keep an eye on these:

• Mature trees you plan to save
• Rock outcrops that resist digging
• Streams, wetlands or drainage paths
• Existing utilities and easements
• Old foundations or fill from past use

Each of these changes your plan. A protected tree limits how close you can grade. A rock shelf can stop a machine cold and blow your schedule. Mark these on the plan so your crew works around them, not into them.

Interpreting Survey Data Before Earthwork Begins

Raw survey data only helps if you read it right. Start with the contour lines and find the steep and flat zones. Then locate the high and low points that drive your cut and fill. A quick read tells you where the heavy work sits.

Work out your cut and fill balance next. Add up the dirt you’ll remove and the dirt you’ll need. If they match, you save on hauling. If they don’t, you plan to bring soil in or truck it out.

Bring your grading contractor into this read early. They can spot issues an estimate might miss. Their input on access and staging saves time once machines roll in. A shared read of the data keeps everyone on the same plan.

Using a Topographic Survey to Improve Grading Efficiency

Good data makes grading faster and cheaper. You move the right amount of dirt on the first pass. You stage equipment where the work is. Fewer surprises mean fewer stops and less rework.

The survey also feeds machine control systems. Many crews load survey data into GPS-guided dozers and graders. The machine follows the design grade with little staking. That cuts labor and boosts accuracy across the site.

Smart planning protects your schedule too. You know the tough spots before you start, so they don’t stall you. You order the right trucks and crew for the real volume. A grade planned from solid data finishes on time more often.

Frequently Asked Questions

What does a topographic survey show for grading?

A topographic survey shows the exact shape and elevation of a lot. It maps slopes, high points, low points and existing features as contour lines. Builders use it to plan cut and fill and to set the target grade. It gives the ground data you need before moving any dirt.

How does a topographic survey lower grading costs?

The survey lets you balance cut and fill so you haul less dirt. It flags steep spots and rock that would otherwise surprise your crew. You order the right equipment and trucks for the real volume. That planning cuts wasted passes and keeps the job on budget.

When should a builder get a topographic survey?

Get it before you design the grading plan, not after earthwork starts. The elevation data shapes your cut and fill and your equipment plan. Ordering late means guessing at volumes and risking rework. Early data keeps the grade plan accurate from the start.

Can topographic survey data be used with machine control?

Yes, most grading crews can load survey data into GPS-guided machines. The dozer or grader follows the design grade with little manual staking. This speeds up the work and improves accuracy. It works best when the survey is detailed and current.

Is a topographic survey worth it for a small lot?

Yes, even a small lot can hide grading surprises. A hidden slope or rock shelf can blow a small budget fast. The survey costs far less than fixing a bad grade after the fact. For any lot with real elevation change, it pays off.
